Suspension Clamp
- Category： Power fitting
Welcome to OEM and Let us know if you need further details or assistance!
The suspension clamp is mainly used for overhead power lines orsubstations, and the conductor and lightning wire are hung on the insulatorstring or the lightning wire is hung on the tower through the connecting hardware; lt is made of Horse lron and aluminum alloy.

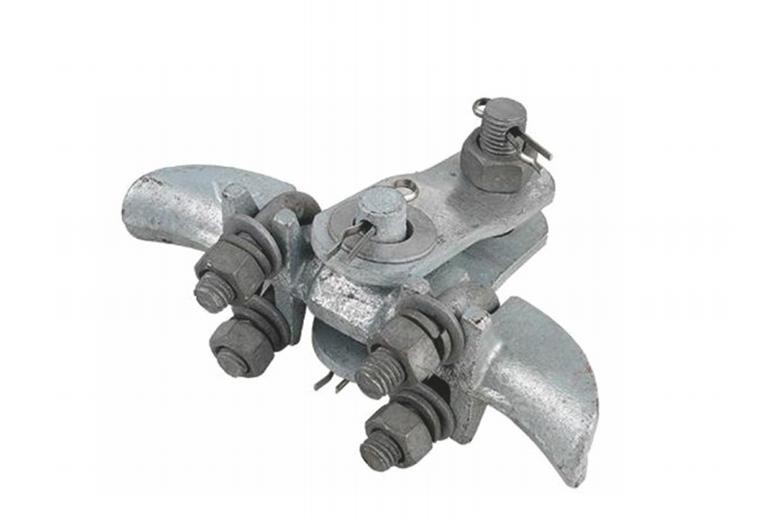

CGU/XGU Suspension Clamps
Material:Body & Keeper: CGU are made of aluminum. XGU are made of hot dipgalvanized steel.U bolt / bolt: Hot dip galvanized steel R Pin: Stainless Steel.
| Type | Applicable conductor diameter(mm) | Failure Load ( KN) |
| CGU-2 | 7.0-12.4 | 40 |
| CGU-3 | 12.4-17.0 | 40 |
| CGU-4 | 19.0-21.5 | 40 |
| CGU-5 | 24.2-33.0 | 70 |
| Type | Applicable conductor diameter(mm) | Failure Load ( KN) |
| XGU-1 | 5.0-7.0 | 40 |
| XGU-2 | 7.1-13.0 | 40 |
| XGU-3 | 13.1-21.0 | 40 |
| XGU-4 | 21.1-26.0 | 40 |
| Aspect | BS (British Standards) | IEC (International Electrotechnical Commission) | AS/NZS (Australian/New Zealand Standards) | US Standards (ANSI/IEEE) | GB (Chinese National Standards) |
|---|---|---|---|---|---|
| Voltage Range | Typically up to 36 kV | Up to 52 kV | Up to 36 kV | Up to 46 kV | Up to 40.5 kV |
| Material Specifications | Specifies materials for durability and safety | General material guidelines for international use | Similar to IEC with local adaptations | Detailed material specs for US market | Follows IEC with local modifications |
| Testing Requirements | Includes type, routine, and sample tests | Comprehensive testing for safety and performance | Aligns with IEC but includes local conditions | Rigorous testing for safety and reliability | Similar to IEC with additional local tests |
| Application Guidelines | Detailed installation and usage guidelines | Broad guidelines for international applicability | Specific to Australian and New Zealand conditions | Focused on US electrical systems | Tailored to Chinese electrical systems |
| Safety Standards | High emphasis on safety and reliability | Global safety standards | High safety standards with local regulations | Stringent safety protocols | Strong focus on safety and compliance |
| Certification | Kitemark certification | CB Scheme for international certification | Local certification bodies | UL, CSA, and other US certifications |
CCC (China Compulsory Certification) |
