Earth rods
- Category： Power fitting
Welcome to OEM and Let us know if you need further details or assistance!

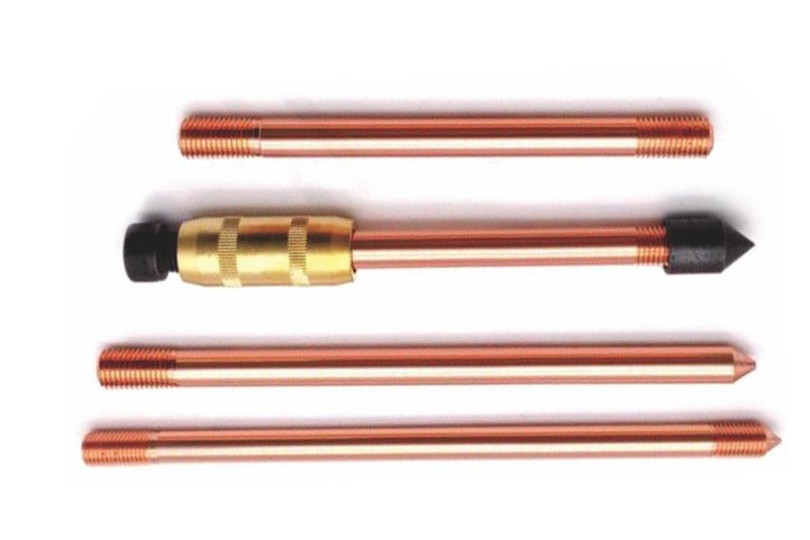

Copperbonded earth rods -externally threaded
Normal copper(stainless steel,galvanized)bonded earth rods-254microns(customized available) are manufactured by electroplating 99.9 %pureelectrolytic copper onto a low carbon steel bar with high tensile strength(minimum 600N/mm2).To preventoxidation of copper bonding, each rod istreated with Benzol Triozole derivatives. Thre ads on the rods are formed byrollthreading process giving extra strength to the threads and eliminatingrisk ofchipping ofthreads while driving the rod in the ground. The rods areExternallythreaded and matched with couplers inter
Material: brass,galvanized,stainless steel
| Product Code |
Nominal Diameter Inch |
Shank Diameter mm |
Thread Diameter Inch |
Rod Length |
| 1/2" | 1/2" | 12.7 | 1/2" | Customized |
| 5/8" | 5/8" | 14.2 | 5/8" | |
| 3/4" | 3/4" | 16 | 3/4" | |
| 1" | 1" | 17.2 | 1" |
| Aspect | BS (British Standards) | IEC (International Standards) | AS/NZS (Australian/New Zealand Standards) | US Standards (ANSI/IEEE/NEMA) | GB (Chinese National Standards) |
|---|---|---|---|---|---|
| Material Specifications | Specifies materials for durability, conductivity, and corrosion resistance (e.g., copper, galvanized steel) | General material guidelines for global use | Similar to IEC with local adaptations (e.g., AS/NZS 1768) | Detailed material specs for US market (e.g., ASTM standards) | Follows IEC with local modifications (e.g., GB/T 50065) |
| Electrical Conductivity | High emphasis on conductivity and low resistance (e.g., BS EN 62561) | Comprehensive conductivity standards (e.g., IEC 62561) | Aligns with IEC but includes local electrical codes | Stringent conductivity protocols (e.g., IEEE 80) | Strong focus on conductivity and compliance (e.g., GB/T 50065) |
| Corrosion Resistance | High emphasis on corrosion resistance (e.g., BS EN 50164) | General corrosion resistance guidelines (e.g., IEC 62561) | Specific to local conditions (e.g., soil type, moisture) | Rigorous corrosion resistance standards (e.g., ASTM standards) | Similar to IEC with additional local requirements |
| Testing Requirements | Includes type, routine, and sample tests (e.g., BS EN 62561) | Comprehensive testing for safety and performance (e.g., IEC 62561) | Aligns with IEC but includes local conditions | Rigorous testing for safety and reliability (e.g., ASTM, IEEE standards) | Similar to IEC with additional local tests |
| Application Guidelines | Detailed installation and usage guidelines (e.g., BS 7430) | Broad guidelines for international applicability | Specific to Australian and New Zealand conditions (e.g., AS/NZS 3000) | Focused on US electrical systems (e.g., NEC, IEEE 80) | Tailored to Chinese electrical systems (e.g., GB/T 50065) |
| Safety Standards | High emphasis on safety and reliability (e.g., BS EN 62561) | Global safety standards (e.g., IEC 62561) | High safety standards with local regulations | Stringent safety protocols (e.g., IEEE 80, NEC) | Strong focus on safety and compliance (e.g., GB/T 50065) |
| Certification | Kitemark certification | CB Scheme for international certification | Local certification bodies (e.g., SAI Global) | UL, CSA, and other US certifications |
CCC (China Compulsory Certification) |
